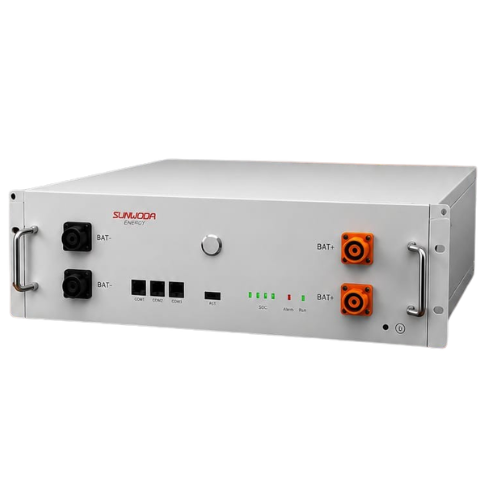

Sunwoda 5.12kWh Lithium Battery

Sunwoda 5.12kWh Lithium Battery

R9,995.00

Introducing the Sunwoda 5.12kWh Lithium Battery which adopts a flexible modular design, which can be expanded from 5 kWh of a single module to 40 kWh of 8 battery modules.

Sunwoda 5.12kWh Lithium Battery



Battery Chemistry Lithium Iron Phosphate (LiFePO4/LFP)
Nominal Energy 5.12 kWh
Nominal Voltage 51.2 V
Nominal Capacity 100 Ah
Charge/Discharge Cut-off 44.8 V – 55.2 V
Rated Charge/Discharge Current 50 A / 50 A
Max. Charge/Discharge Current 100 A / 100 A
Roundtrip Efficiency > 95%
Communication Interface CAN 2.0 / RS485
Scalability Up to 8 units in parallel (max 40.96 kWh)
Cycle Life 6000+ cycles (typical)
IP Rating IP20 (Indoor use)
Operating Temperature -10°C to 50°C
Dimensions (approx.) ~433 × 482 × 135 mm
Weight ~45 kg

  • Safety First: Utilizes LiFePO4 chemistry, known for high thermal stability and fire safety compared to older lithium-ion technologies.

  • Cost-Effective: Often marketed as a “budget-friendly” option that does not compromise on build quality or “A-grade” cell performance.

  • Scalable Power: The modular design allows you to start with one 5kWh unit and expand up to 40kWh+ as your power requirements grow.

  • Wide Compatibility: Features standard CAN/RS485 communication, making it compatible with most major brands of hybrid inverters (e.g., Luxpower, Deye, Sunsynk).

  • Easy Installation: Designed for standard 19-inch rack mounting, offering a clean, professional “plug-and-play” installation.

Warranties:

5 Years Warranty
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.

Category:

Description

Introducing the Sunwoda 5.12kWh Lithium Battery which adopts a flexible modular design, which can be expanded from 5 kWh of a single module to 40 kWh of 8 battery modules.

Sunwoda 5.12kWh Lithium Battery



Battery Chemistry Lithium Iron Phosphate (LiFePO4/LFP)
Nominal Energy 5.12 kWh
Nominal Voltage 51.2 V
Nominal Capacity 100 Ah
Charge/Discharge Cut-off 44.8 V – 55.2 V
Rated Charge/Discharge Current 50 A / 50 A
Max. Charge/Discharge Current 100 A / 100 A
Roundtrip Efficiency > 95%
Communication Interface CAN 2.0 / RS485
Scalability Up to 8 units in parallel (max 40.96 kWh)
Cycle Life 6000+ cycles (typical)
IP Rating IP20 (Indoor use)
Operating Temperature -10°C to 50°C
Dimensions (approx.) ~433 × 482 × 135 mm
Weight ~45 kg

  • Safety First: Utilizes LiFePO4 chemistry, known for high thermal stability and fire safety compared to older lithium-ion technologies.

  • Cost-Effective: Often marketed as a “budget-friendly” option that does not compromise on build quality or “A-grade” cell performance.

  • Scalable Power: The modular design allows you to start with one 5kWh unit and expand up to 40kWh+ as your power requirements grow.

  • Wide Compatibility: Features standard CAN/RS485 communication, making it compatible with most major brands of hybrid inverters (e.g., Luxpower, Deye, Sunsynk).

  • Easy Installation: Designed for standard 19-inch rack mounting, offering a clean, professional “plug-and-play” installation.

Warranties:

5 Years Warranty
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
